Advice needed on Kingmax inverter and NEnergy battery

D

Dill

Well-Known Member
Joined
May 6, 2012
Messages
320
Reaction score
91
Need some advice on the below combo setup. Is it worth it or should I be looking at something else for around the 10k mark?

www.securityandmore.co.za

1.2KW Inverter and Battery Combo Deal |100Ah Lithium Battery and 1200W Pure Sine Inverter Backup Kit

DUE TO THE WEIGHT AND SIZE OF THE PRODUCTS WE ARE GOING TO SEND YOU A QUOTE ON SHIPPING BASED ON YOUR AREA AND SIZE OF THE ORDER Battery Specifications: Nenergy 12V 1.28kWh 100Ah Wall mount Lithium Cell Specifications: Nominal Voltage : 12.8 Usable Power: 1280Wh Max Continues discharge: 50A...
www.securityandmore.co.za www.securityandmore.co.za

The 0.5c 50ah max discharge means you must use the inverter as a max 600w constant load

Naturally this isn't a problem for most as to get through 2hrs you would need to use less than 600w and to make it through 4hrs half that

I assume the battery can peak at 100ah thus meet the peak load of the inverter for shorter periods
As long as it doesn't trip at 50A on overload the specs sheet doesn't say peak load but normally the peak is 1c ie 100a on a 100ah battery

And a faster charge rate would be nice , to recharge a totally flat battery in the 4hrs we have power inbetween the higher stages

But yea getting exactly what we want ain't always easy , sometimes we need to compromise on certain specs for price

Last edited:
Besides the fact that you can get a 1C battery and inverter at pretty much the same price, I really don't see the problem.

If you are happy with the 600W limit from the 1.2kW inverter then go for it.

But be warned about the battery, looks are deceptive, it is much bigger than it looks in the pictures.

TheChamp said:
Besides the fact that you can get a 1C battery and inverter at pretty much the same price, I really don't see the problem.

If you are happy with the 600W limit from the 1.2kW inverter then go for it.

But be warned about the battery, looks are deceptive, it is much bigger than it looks in the pictures.
Click to expand...
Wasn't sure what the 1C battery rating meant but just read up on it and it's interesting.

What would you recommend to get?

TheChamp said:
Besides the fact that you can get a 1C battery and inverter at pretty much the same price, I really don't see the problem.

If you are happy with the 600W limit from the 1.2kW inverter then go for it.

But be warned about the battery, looks are deceptive, it is much bigger than it looks in the pictures.
Click to expand...

Where do you get 600W out of curiosity?

Dill said:
Wasn't sure what the 1C battery rating meant but just read up on it and it's interesting.

What would you recommend to get?
Click to expand...
Any 1C battery at a good price. I see there aren't many under R7k at the moment but if you look hard enough you can find one.

If you are in a hurry, you csn still go with the same battery but at a cheaper option, you can get the battery and inverter for under 9k. I can personally vouch for the inverter, it's so silent you won't even know it's there, perfect for small spaces.

www.bobshop.co.za

Lithium Ion Battery 12V 100AH 1.28KWH TOBO LifeP04 | bobshop.co.za

Buy Lithium Ion Battery 12V 100AH 1.28KWH TOBO LifeP04 for R5,600.00
www.bobshop.co.za www.bobshop.co.za

www.bobshop.co.za

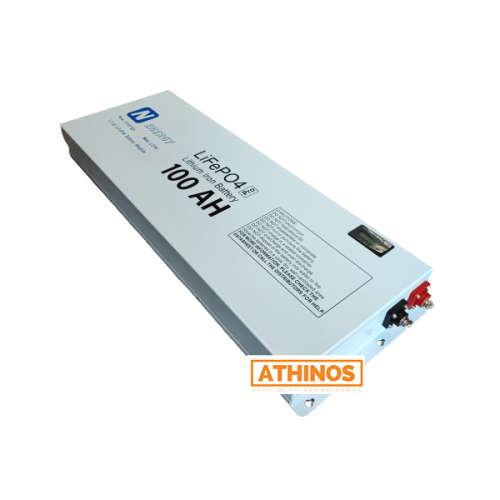

Nenergy 1.28KWh 12V Lithium-ion LiFePo4 Battery 100Ah | bobshop.co.za

Buy Nenergy 1.28KWh 12V Lithium-ion LiFePo4 Battery 100Ah for R5,749.00
www.bobshop.co.za www.bobshop.co.za

www.bobshop.co.za

Kingstar 1KVA Pure Sine Hybrid Inverter 12V DC | bobshop.co.za

Buy Kingstar 1KVA Pure Sine Hybrid Inverter 12V DC for R2,900.00
www.bobshop.co.za www.bobshop.co.za

Rickster said:
Where do you get 600W out of curiosity?
Click to expand...
From the battery specs, you can only draw maximum of 50A from it, multiply that by 12V, you get 600W. So your inverter can handle 1200W but you will be limited by the battery, you will need two of those to use the 1200W capacity.

Maximum Continuous Discharging Current: 50A
Working Voltage Range 116V-14.6V
Built In Protection -Over-Charge, Over-Discharge, Over-Temperature
Click to expand...

TheChamp said:
From the battery specs, you can only draw maximum of 50A from it, multiply that by 12V, you get 600W. So your inverter can handle 1200W but you will be limited by the battery, you will need two of those to use the 1200W capacity.
Click to expand...
So I'm assuming that I would need to look for a battery that can draw 100a from it which would be a 1C rating ( that is a maximum continuous discharge of 100a)

I would not be using the full 1000w at all times because I just want to use the setup to power a TV, playstation and some lights for now.

I see the LifePower Bronze 12V 100Ah 1.2kWh allows for Max Continuous Discharge: 100A (1C) and also the Mecer lithium batteries.

Not really in a hurry and still shopping around.

Dill said:
So I'm assuming that I would need to look for a battery that can draw 100a from it which would be a 1C rating ( that is a maximum continuous discharge of 100a)

I would not be using the full 1000w at all times because I just want to use the setup to power a TV, playstation and some lights for now.

I see the LifePower Bronze 12V 100Ah 1.2kWh allows for Max Continuous Discharge: 100A (1C) and also the Mecer lithium batteries.

Not really in a hurry and still shopping around.
Click to expand...
Yes, that would be it.

That price is way to high for that kit and that battery is going for R4899 atm.

x7razor said:
That price is way to high for that kit and that battery is going for R4899 atm.
Click to expand...
Who has it for 4899?

Looking for some recommendations for a budget of around 10k

Dill said:
Who has it for 4899?

Looking for some recommendations for a budget of around 10k
Click to expand...
Get the inverter in the meanwhile, it's very keenly priced. Do note that it does not have a solar charger so if you intend using solar you will need an external charger or to go for a different one.

www.bobshop.co.za

Kingstar 1KVA Pure Sine Hybrid Inverter 12V DC | bobshop.co.za

Buy Kingstar 1KVA Pure Sine Hybrid Inverter 12V DC for R2,900.00
www.bobshop.co.za www.bobshop.co.za

TheChamp said:
Where?
Click to expand...
Parow Electronics > Voortrekker road 289 Parow...opposite police station

Got 1 on lay-by will collect next month payday since i did not plan for it :X3:. Inverters also cheap Conderenergy 1600w 12v hybrid mppt for R2900


Attachments

  • 20230902_134645.jpg
    292.5 KB · Views: 8
Last edited:
x7razor said:
Parow Electronics > Voortrekker road 289 Parow...opposite police station

Got 1 on lay-by will collect next month payday since i did not plan for it :X3:. Inverters also cheap Conderenergy 1600w 12v hybrid mppt for R2900
Click to expand...
How much for a combo including cables?

If you choose that battery and a inverter like in previous post then it will be R7799 or R8149 if the cables is not included since I am not sure if that Conderenergy 1600w comes with the cables but they also heave ECCO models but the Sun 1000w + 1500w models comes with all the cables since we bought both models.

x7razor said:
If you choose that battery and a inverter like in previous post then it will be R7799 or R8149 if the cables is not included since I am not sure if that Conderenergy 1600w comes with the cables but they also heave ECCO models but the Sun 1000w + 1500w models comes with all the cables since we bought both models.
Click to expand...
Which type is the Conderenergy, the Mecer /Ellies type and how noisy is it?
