HP Prodesk 2.5 internal case

[bar1]

Hi,

I need to add a 2.5 drive for a prodesk 400 G6,
the inside does not have caddy/case/cable or anything to add the drive (just the space), what do i need to buy in order to install an internal hard drive, and where from?

thanks.



[bar1]

ok i can see some cables, are they all the same or does it have to be specific?

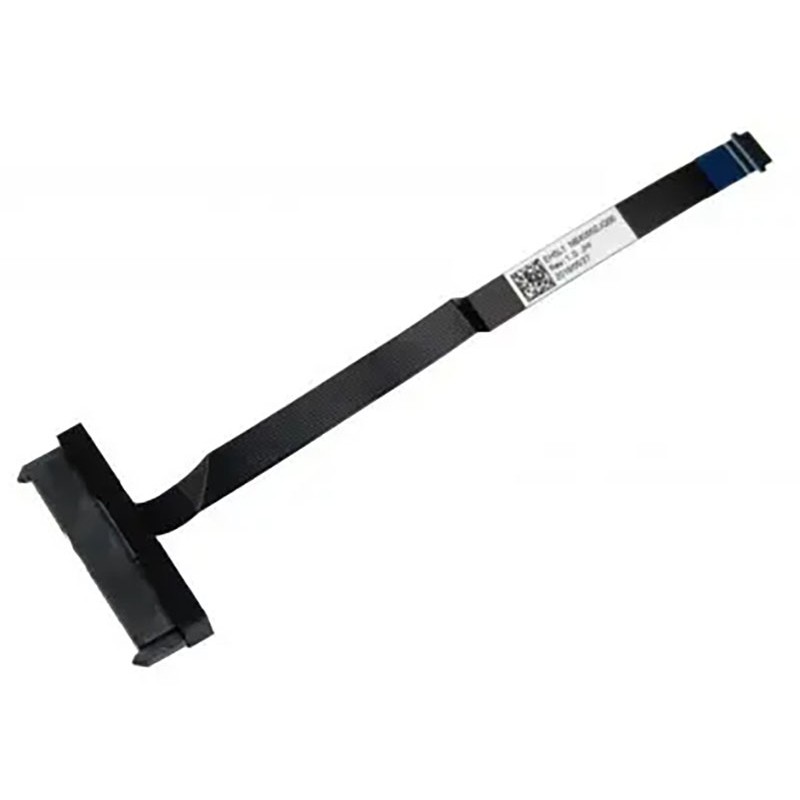

Acer Aspire A315-54 A315-56 Hard Drive Connector & Cable 50.HEEN2.001

New Acer laptop hard drives HDD connector and cable. Part Number: 50.HEEN2.001 Compatible Models: Acer Aspire 3 A315-54, A315-54K 2.5inch

www.geewiz.co.za

Search: 388 results found for "Acer"

A First Technology Group company, trusted by South African's for over 40 years. First Shop is our online computer store for businesses and consumers. Buy laptops for sale, printers, tablets, antivirus, software and so much more. Every Day Low Price Match Guarantee. Online chat available or call...

www.firstshop.co.za

Computing :: Accessories :: Cable :: CABLE.HDD.W/CONNECTOR.UMA.FFC

CABLE HDD W/CONNECTOR UMA FFC

pclinkshop.co.za



[Crowley]

Hi,

I need to add a 2.5 drive for a prodesk 400 G6,
the inside does not have caddy/case/cable or anything to add the drive (just the space), what do i need to buy in order to install an internal hard drive, and where from?

thanks.

First make sure there is a spare SATA port on the motherboard and a spare sata power plug on the PSU.

If both are available you just need a SATA cable and a 3.5" to 2.5" bracket like this one.



[bar1]

Didn't see a sata port...



[PhireSide]

Didn't see a sata port...

On these models, it uses a proprietary cable that converts to SATA, if you can find the HMM for the device, it should give you a part number

EDIT: http://h10032.www1.hp.com/ctg/Manual/c06713269.pdf



[bar1]

thanks, but i am still not sure where to find this cable in south africa.
any idea if something like this will work?

Search: 1657 results found for "ASUS"

A First Technology Group company, trusted by South African's for over 40 years. First Shop is our online computer store for businesses and consumers. Buy laptops for sale, printers, tablets, antivirus, software and so much more. Every Day Low Price Match Guarantee. Online chat available or call...

www.firstshop.co.za

or is it a proprietary cable for HP.



[PhireSide]

thanks, but i am still not sure where to find this cable in south africa.
any idea if something like this will work?

Search: 1657 results found for "ASUS"

A First Technology Group company, trusted by South African's for over 40 years. First Shop is our online computer store for businesses and consumers. Buy laptops for sale, printers, tablets, antivirus, software and so much more. Every Day Low Price Match Guarantee. Online chat available or call...

www.firstshop.co.za

or is it a proprietary cable for HP.

I wouldn't take the chance on one that 'might' fit. If you happen to get one that crosses the + and ground lines, you could fry the drive or possibly your board.

This is probably what you are looking for:

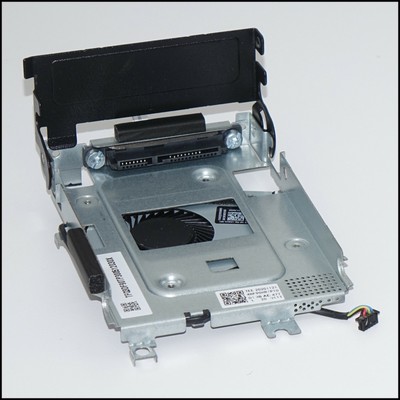

HP EliteDesk 800 ProDesk 600 G6 G8 Mini Hard Drive Caddy w SATA Cable and Fan | eBay

Find many great new & used options and get the best deals for HP EliteDesk 800 ProDesk 600 G6 G8 Mini Hard Drive Caddy w SATA Cable and Fan at the best online prices at eBay! Free shipping for many products!

www.ebay.com



[UB40]

Is there an M2 slot under the 2.5" SSD? My HP Prodesk 600 G3 Mini has it. There's 2 slots, 1 has the WiFi module in it



[shadow_man]

Is there an M2 slot under the 2.5" SSD? My HP Prodesk 600 G3 Mini has it. There's 2 slots, 1 has the WiFi module in it

I have the 400 G6 and yet you can slot a smaller slower drive in the WiFi slot if you meet the standard.
