Let's design our own UPS
- Thread starter Thor
- Start date
wingnut771
Honorary Master
RaptorSA
Executive Member
- Joined
- Sep 2, 2008
- Messages
- 6,957
- Reaction score
- 6,824
I clamped a male kettle cord connection to the wheel base.
So I can just use a normal PC kettle cord.
Nice and compact.
Will try to find a better way to mount it though if I did another build.
RaptorSA
Executive Member
- Joined
- Sep 2, 2008
- Messages
- 6,957
- Reaction score
- 6,824
So that's a tricky one... the short answer is: R30K
But, I was sent the wrong battery, I paid and ordered a 50Ah 48V pack but received a 100Ah 48V pack.
So technically I paid about R15K less than I should have.
Bought some tools with the money I saved... like a proper brushless drill, heavy-duty battery cable crimping tool etc.
That looks awesome. Did you take it for a spin? What what the max wattage that you pulled form it?
RaptorSA
Executive Member
- Joined
- Sep 2, 2008
- Messages
- 6,957
- Reaction score
- 6,824
So I couldn't really push it hard enough yet without having to run extension leads all over the place.
The most I could do was run a 700Watt charger on my electric bike while plugging in a hair dryer at full blast.... but that got me to 2.1Kilowatts.
Enough though for my mum to run the TV, fridge, lights and use a hairdryer at the same time at least.
lmao
Executive Member
- Joined
- Aug 11, 2021
- Messages
- 6,749
- Reaction score
- 5,769
Might need a new thread, not sure.
Lightning just nuked my inverter, and long story short, I now have a 12v 1kwh battery that's going to be gathering dust unless I repurpose it. I bought an Ecoflow as a replacement and the old battery isn't going to fit in with the new system.
My internet routers are all 12v though. In principle the battery should keep them running for a loooooong time. What's the easiest/cheapest way to charge the battery without having to manually switch the power over when loadshedding hits?
Lightning just nuked my inverter, and long story short, I now have a 12v 1kwh battery that's going to be gathering dust unless I repurpose it. I bought an Ecoflow as a replacement and the old battery isn't going to fit in with the new system.
My internet routers are all 12v though. In principle the battery should keep them running for a loooooong time. What's the easiest/cheapest way to charge the battery without having to manually switch the power over when loadshedding hits?
You can always use the 12v battery to charge the EcoFlow but it will only charge it at around 100w.
You'll need an external charger to charge it thought. I have one that looks like this:
Last edited:
HKD ADJ DC/DC MODULE 3A 1,5-35V

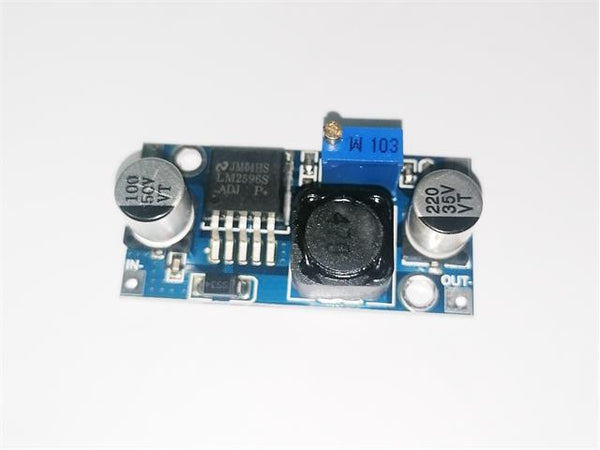

Adjustable DC/DC Buck Module LM2596S I/P 3-40V O/P 1,5-35V 3A (Requires 1,5V Differential) See also BMT ADJ DC/DC MODULE 3A 1,5-35VAdjustable DC/DC Buck Module Overview This DC-DC module uses the step-down switching regulator LM2596S to provide a stable power supply for the users. The output...
www.communica.co.za
Use an old laptop charger (18-19 V) to power one of these set for a float voltage e.g. 13.6 for lead acid.
BMT DC/DC BUCK-BOOST 1.25-35V 4A

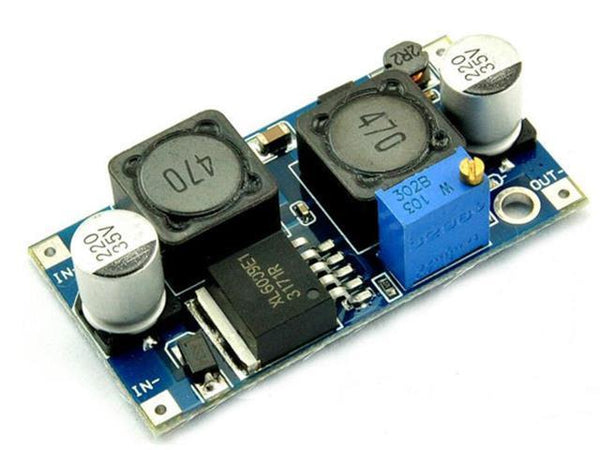

Dual Coil Version DC/DC Constanat Output Auto Buck/Boost Module with HI Value Caps. Stabilised Output. XL6009 Chip. Ideal For VehicleS. I/P 5-32V. O/P 1,25-32V Adjustable- 4A Max.Constanat Output Auto Buck/Boost Module Overview Auto start voltage will be pulled down to 7V or less, and engine...
www.communica.co.za
Put that on the output to get constant 12 V.
You will have a nice on-line UPS with zero transfer time and several days runtime.
Last edited:
lmao
Executive Member
- Joined
- Aug 11, 2021
- Messages
- 6,749
- Reaction score
- 5,769
Battery is LiFePo4. Got a laptop charger, but not a spare laptop charger, so will need an alternative.HKD ADJ DC/DC MODULE 3A 1,5-35V
Adjustable DC/DC Buck Module LM2596S I/P 3-40V O/P 1,5-35V 3A (Requires 1,5V Differential) See also BMT ADJ DC/DC MODULE 3A 1,5-35VAdjustable DC/DC Buck Module Overview This DC-DC module uses the step-down switching regulator LM2596S to provide a stable power supply for the users. The output...
Use an old laptop charger (18-19 V) to power one of these set for a float voltage e.g. 13.6 for lead acid.
BMT DC/DC BUCK-BOOST 1.25-35V 4A
Dual Coil Version DC/DC Constanat Output Auto Buck/Boost Module with HI Value Caps. Stabilised Output. XL6009 Chip. Ideal For VehicleS. I/P 5-32V. O/P 1,25-32V Adjustable- 4A Max.Constanat Output Auto Buck/Boost Module Overview Auto start voltage will be pulled down to 7V or less, and engine...
Put that on the output to get constant 12 V.
You will have a nice on-line UPS with zero transfer time and several days runtime.
How about a spare phone charger, plus this:
HKD DC/DC BOOST MOD+USB 2-24V 2A

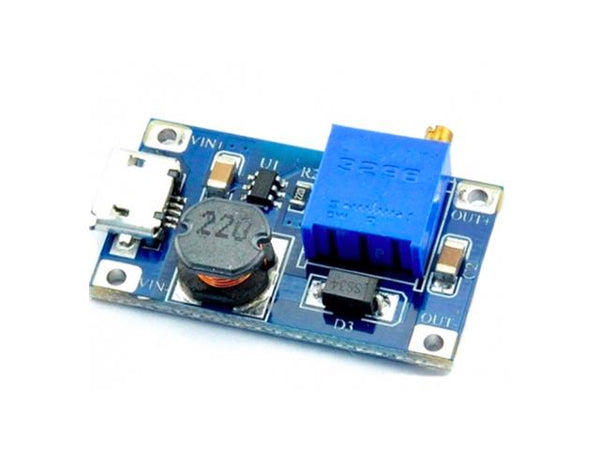

MT3608 DC/DC Step-Up DC Boost Adjustable Module I/P2-24V. O/P 5-28V Max. This model has a Micro USB Input in Addition to VIN+ AND Vin- InputsDC/DC Step-Up DC Boost Adjustable Module Features USE: Attach 2 ~ 24 V DC to the Input + & - pads, adjust the potentiometer while measuring the output...
www.communica.co.za
It'll probably be a slower charge than discharge rate but it's certainly a cheap option.
lmao
Executive Member
- Joined
- Aug 11, 2021
- Messages
- 6,749
- Reaction score
- 5,769
I think I'm gonna get the sort of charger Park recommended.How about a spare phone charger, plus this:
HKD DC/DC BOOST MOD+USB 2-24V 2A
MT3608 DC/DC Step-Up DC Boost Adjustable Module I/P2-24V. O/P 5-28V Max. This model has a Micro USB Input in Addition to VIN+ AND Vin- InputsDC/DC Step-Up DC Boost Adjustable Module Features USE: Attach 2 ~ 24 V DC to the Input + & - pads, adjust the potentiometer while measuring the output...
It'll probably be a slower charge than discharge rate but it's certainly a cheap option.
I've got a small backup power unit that can run a router for a few hours, it takes 12v dc in and the input also suggests it will accept a solar panel. if the power goes, it automatically keeps everything going. So in principle if I'm looking at a longer outage, I could probably just plug the battery into the backup power unit to keep it charged. I don't particularly mind faffing about and swapping stuff around, so long as I don't get disconnected at the time when the power dies.
Gravedigger
Expert Member
Smart man!
What is the weight of this setup?
I'm thinking that I can do more or less the same to my inverter setup, should I need to move it.
You could also add a earth rod with a flylead that you can poke into the earth somewhere and have a proper earth when not plugged in.
You thought about adding a EL to the output of the inverter? Should one have a device that is faulty, that it can properly go to earth (earth rod) and not through you and trip the EL.
I imagine it should not be that hard? You get these Din rails that you can cut a section off and poprivet it on that alu bar you have on there.
Where did you get the trolley?
RaptorSA
Executive Member
- Joined
- Sep 2, 2008
- Messages
- 6,957
- Reaction score
- 6,824
Thanks man.
Yeah, so this was quite a while ago. My mom is still depending on this thing... however, a few months ago they had a severe lightning strike in the area and she didn't unplug the inverter from the grid, it fried that Growatt inverter but it was replaced with a new one and now it's kicking perfectly again. They're still not using solar panels with it but I suspect that might become necessary in the near future. Earthing it would be a good idea.
I never weighed it but it's quite heavy, you definitely need the hand truck effect to move it around. My guess is it was probably around 50-60 Kg's... but the fact that the weight of the inverter is at the top created a very nice lever effect so it was easy to move around despite the weight.... and after you place it in the position you want it it's easy to just pop off the wheels and place them in a cupboard somewhere, it looks pretty nice and not out of place.
I haven't built another one since but I've been itching to do so ever since I built it, just because it works so well and I know many people who can benefit. It looks like it could also work with those "lemoen" batteries you find locally these days. It would definitely be less expensive to build one now.

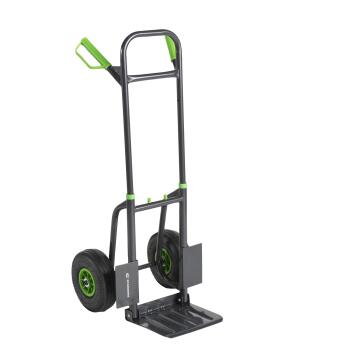

Here's the link of the hand truck I used. Jees, I see the prices on those things have increased, still worth it though since it really was the perfect fit and haven't seen any similar hand trucks out there that would work this well.
RIGID HANDTRUCK 200KG,FOLDABLE,STANDERS
RIGID HANDTRUCK 200KG, FOLDABLE, INFLATED WHEELS, STANDERS
leroymerlin.co.za
Willie Trombone
Honorary Master
- Joined
- Jul 18, 2008
- Messages
- 63,225
- Reaction score
- 21,660
How’s this going guys?Hello Guys,
This is a continuation from this:
Router Battery Backup
NO! The 8100 has a maximum output of 100W, but it has 8x 1800mAh batteries. Where as the 860P has a maximum output of 60W, but has 8x 2200mAh batteries. So if you are just powering your routers it will keep them powered for longer. Furthermore the 860P does has POE. Okay! And the 430M? I only...mybroadband.co.za
In essence, there are good UPSes on the market, but we can do better and some of us might have niche requirements or just want more batteries because we can.
The idea here is to see if we can crowdsource a bit of knowledge and create a POC UPS, an opensource UPS if you will...
The DC UPS must take AC in and then have the selection of outputs (discussed here: https://mybroadband.co.za/forum/threads/lets-design-our-own-ups.1120162/#post-26783490) and only use the battery when the power goes out.
3D printers and components are very affordable actually and Eskom is not going away so if you are a nerd like me & you want to always have your internet and raspberry pi with pi-hole on during load shedding, but you want a bit more than what the market has to offer then this is the thread.
