Wanted: Anet A8 3d printer motherboard.

C

CellBel

Expert Member
Joined
Dec 26, 2006
Messages
2,289
Reaction score
15
Location
In the cloud
Anet A8 3d printer motherboard V1.0
Is packaging essential?: YES
Desired age and condition: Any age as long as it is V1.0 and working 100%
Location: Postmasburg N/Cape 8420
Willing to accept a shipped item: Yes
Budget: R450.00

Why though? When I still had my A8, I tossed that motherboard and upgraded it immediately...

Dairyfarmer said:
Is this what you looking for?

www.banggood.com

Anet® Upgraded E16 MainBoard MotherBoard Support RepRap Ramps1.4 A8 Main Control Board DIY for 3D Printer

Only US$34.99, buy best anet® upgraded e16 mainboard motherboard support reprap ramps1.4 a8 main control board diy for 3d printer sale online store at wholesale price.
www.banggood.com www.banggood.com

R555 + R55 Buffalo tax free shipping. You should get it within 2 weeks.
Click to expand...
Hi, i bought a lot of items from banggood but they took 90+ days to my local post office. THX for link, i'll keep this in mind.

CellBel said:
Hi, i bought a lot of items from banggood but they took 90+ days to my local post office.
Click to expand...
The tax free option is not through SAPO. They use Buffalo. Only takes 2 weeks or so. My last order left CN 13/12 and is currently passing CBCU (hopefully they have had their Christmas party and clear it quickly). The one before is on it's way to my local PEP store. Cleared CBCU in 7 working days.

Dairyfarmer said:
The tax free option is not through SAPO. They use Buffalo. Only takes 2 weeks or so. My last order left CN 13/12 and is currently passing CBCU (hopefully they have had their Christmas party and clear it quickly). The one before is on it's way to my local PEP store. Cleared CBCU in 7 working days.
Click to expand...
Thx i'll check it out, but it is a big risk buying a board from outside our country regarding shipping damage.

Dairyfarmer said:
The tax free option is not through SAPO. They use Buffalo. Only takes 2 weeks or so. My last order left CN 13/12 and is currently passing CBCU (hopefully they have had their Christmas party and clear it quickly). The one before is on it's way to my local PEP store. Cleared CBCU in 7 working days.
Click to expand...

If it ships with Buffalo you are safe. They use courier services all the way. Once in SA, they hand over the parcel to a local courier such as Fastway to do the last mile delivery.

Takes about 2-3 weeks

hjst45 said:
Upgraded to Ramps 1.4, which is an addon module for Arduino. They're not too expensive, however I see not easy to find. Looks like this altogether with Arduino:


However, if you'd rather just stick with what you have and not plan on doing much customizing or upgrading, then get the original board.
Click to expand...
I think i better start saving for a printer with power resume option because of all the load shedding, my anet a8 is 4 years old now.

CellBel said:
I think i better start saving for a printer with power resume option because of all the load shedding, my anet a8 is 4 years old now.
Click to expand...

Is there even such an option? :unsure: Doesn't make sense if there is, since the pla would cool down where it was busy printing, essentially effing up whatever you were printing anyway...

Resume option on some Creality printers, but with my budget i'll keep looking for a good used mobo.

@CellBel: What is the problem with the current motherboard? Faults on that motherboard are usually related to one or more of the A4988 stepper motor driver chips. There is a lot of information online about how to repair this board. It seems that the stepper motor driver chip costs around R45 locally from diyelectronics or possibly cheaper if you look around.

lokspace.eu

How to fix failed stepper driver on the Anet v1.0 board and use external RepRap Stepper driver

So, the X axis stepper driver on my 3D printer's Anet v1.0 mainboard failed (it was my fault... long story; don't blame the chinese), and was no longer able to drive the stepper motor. I had a spare RAMPS 1.4 board from the second DIY printer I'm building, but I figured I should try to [...]
lokspace.eu
all3dp.com

Anet A8 MOSFET Upgrade - Does It Help & How to Do It

The Anet A8 is one of the most popular budget 3D printers due to its massive community following. However, its control board has a reputation for not being as reliable as it should be. The solution? Add an external [product_overlay id=85490]MOSFET[/product_overlay] to help improve the overall...
all3dp.com all3dp.com
www.diyelectronics.co.za

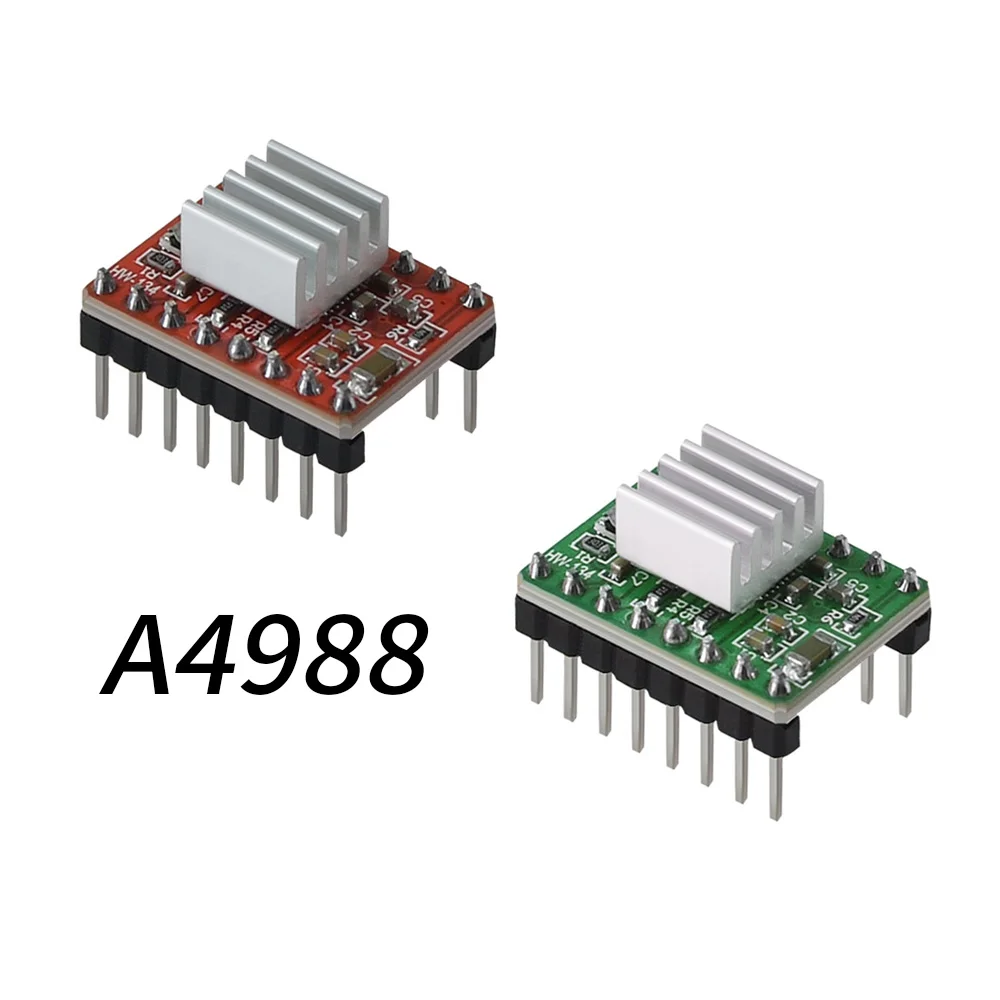

A4988 Stepper Motor Driver Module | Single-Motor Breakout

The A4988 Stepper Motor Driver Module is a breakout board capable of driving a four, six or eight-wire stepper motor at five variable microstep resolutions.
www.diyelectronics.co.za www.diyelectronics.co.za

170694 - STEPPER MOTOR DRIVER BASED ON A4988 WITH HEATSINK

Mantech Electronics is an Electronic Components, Test and Measurement instruments, Consumables, Tools and Power Products, Distributor. Products are available from our branches and distributors throughout Southern Africa. We are committed to helping our customers succeed.!
www.mantech.co.za

The A4988 only costs 50 US cents or less if you buy it from China. You could probably get several of them free of charge if you use a $3 or $4 new customer coupon on Aliexpress.
www.aliexpress.com

3D Printer Parts A4988 TMC2209 TMC2208 Stepper Motor Driver With Heat sink For SKR V1.3 1.4 GTR V1.0 MKS GEN V1.4 board - AliExpress 7

Smarter Shopping, Better Living! Aliexpress.com
www.aliexpress.com www.aliexpress.com

Last edited:
@Jake45
1) Motherboard does not switch cooling fan anymore, i use a separate 12v supply with switch for fan cos i only print pla.
2) Replaced the sd card socket, but with my eyes (68 winters behind them) i messed up the soldering and tracks. I print from pc now but i prefer sd card printing.

That sounds like the IRLR7843PbF Hexfet is damaged? It's shouldn't cost much.

Any TV or radio repair shop should be able to fix the SD card socket pretty easily - Even if large parts of the tracks are missing it shouldn't be difficult to connect small wires to the socket and solder them to the broken traces. Just ask around at a few TV repair places and somebody might be prepared to fix it for you for a small fee.

Aren't there any Pakistani cell phone repair shops nearby? Those guys even do cell phone screen repairs. I'm sure they will do the repairs for a small fee. Just shop around to get the best price. Try to order the spares beforehand if necessary and tell them what you need replaced.

I would recommend using a magnifying glass if you are having problems with seeing the small traces. You can purchase ones on a stand that should make things a lot easier to see. Even the factories use magnifying equipment to check the joints on some of the small surface mount components.

MOSFETs | RS Components

Source MOSFET Transistors at rs-online.com along with other Discrete Semiconductors products. The world's largest high service distributor of Electronics Components, Power & Connectors
za.rs-online.com za.rs-online.com

IRLR7843PbF almost free from China ...
www.aliexpress.com

US $0.67 10% OFF|10pcs/lot IRLR7843PBF IRLR7843 LR7843 TO 252 In Stock|Integrated Circuits| - AliExpress

Smarter Shopping, Better Living! Aliexpress.com
www.aliexpress.com www.aliexpress.com

Last edited:
Dairyfarmer said:
The tax free option is not through SAPO. They use Buffalo. Only takes 2 weeks or so. My last order left CN 13/12 and is currently passing CBCU (hopefully they have had their Christmas party and clear it quickly). The one before is on it's way to my local PEP store. Cleared CBCU in 7 working days.
Click to expand...

Hi Dairyfarmer, do i have to register at Buffalo? THX

Dairyfarmer said:
No. It's just another courier company. They are quick to email you for an ID or importer's number. My packages are just taking forever at the moment.
Click to expand...
OK thx, i've ordered & paid for a board at banggood but they took my money first then told me the item is out of stock and i'll receive a tracking nr as soon as it is back in stock. I think Buffalo will do the shipping.
