Jojo level

[soulie]

.



[alqassam]

Hi,

On my jojo tank (on the ground) I've hooked up an ESP32 to a Ultrasonic distance sensor (think it's SR-04) and then flashed the ESP with ESPHome and calculate the (approx) water based on the distance. The SR04 is mounted at the top of the tank, so the greater the distance the less the water level.

I've never actually got around to it (since there is a plug point installed nearby) but you can use a 3.7V lithium battery and a solar charging panel. Since you probably don't need 100% real time data (assuming) you could get a reading ever hour and then put the ESP into sleep mode.

In terms of there being no signal up there, that one I don't really have an answer for that I've fiddled with, perhaps a GSM model with a sim?

Can probably be in all on the above (minus the GSM module stuff) for about R1200

I did the same except i used a soniff sv with the s4 04 . I just ran cat 5 from the sensor to the sonoff sv which was installed close to a plug.



[lkpat]

Same distance problem and I'd don't want the pump to toggle that quickly. I have some sensors that would tell me if they're submerged which I could bring closer with a smaller tank. Just need to read those signals and act on them to toggle pump on and off. Not sure what to use for that though

How is distance a problem here? Will the water not reach the tank from the pump or something? As Bwana said, adjust the settings of the float system.

Just make sure you get an SANS approved pipe for the water, with the hole on the inside.



[Muttley]

I posted this back a few months back but here's what I did and to date, it's been epic!

So after many frustrating late nights and wasted money on rubbish sensors, blown components etc I present to you all an accurate Jojo Tank measurement system for HA:

Components used:

2 x DC - DC Voltage Regulator
1 x 12V Power Supply - used an old HDD power supply
1 x 24V Power Supply
1 x ADS1115 16 bit Analog to Digital Converter
1 x ESP32 S Nodemcu
1 x Gravity: Submersible Pressure Sensor
1 x DF Robot Current to Voltage Converter 4-20mA (I blew one when I mixed up the sensor wiring)
Misc: Enclosure, outdoor rated network cable, conduit, wago style connectors (these things are awesome).

captive_portal:

i2c:
  sda: GPIO21
  scl: GPIO22
  scan: true
  id: bus_a

ads1115:
 address: 0x48
 i2c_id: bus_a
 continuous_mode: off

sensor:
- name: Jojo Tank Height
  id: tank_height
  platform: ads1115
  multiplexer: 'A0_GND'
  update_interval: 60s
  gain: 4.096
  unit_of_measurement: "metres"
  icon: "mdi:gauge"
#  accuracy_decimals: 3

  filters:

  - median:
     window_size: 200
     send_every: 10
     send_first_at: 4


  - calibrate_linear:

    - 0.480 -> 0
    - 1.029 -> 1.543

- platform: template
  name: Jojo Tank Volume
  id: tank_volume
  unit_of_measurement: "litres"
  lambda: |-
    return 3.14159265 * 0.71 * 0.71 * id(tank_height).state * 1000;

- platform: template
  name: Jojo Tank Percentage
  id: tank_percentage
  unit_of_measurement: "%"
  accuracy_decimals: 0
  lambda: |-
    return (id(tank_height).state) / 1.543 * 100;


- platform: wifi_signal
  name: "Jojo Volume WiFi Signal Sensor"
  update_interval: 60s

switch:
  - platform: restart
    name: tankvolume

I had to place a tape measure inside the tank to measure the actual height of the water for the calibration.

(The tank is slightly over filling as the float needs replacing)

(still need to mount the enclosure and connect the cable from the sensor nicely) Note to self: Don't buy a fiberglass enclosure again!



Some side notes:

• The DC - DC converters are critical to ensure that the voltage is stable.
• As the tank is used through out the day, there is not much of a water level drop as the float keeps filling as water is used.
• The built in analog to digital converters on the ESP32's/ESP8266's are rubbish, hence the needs for an ADS1115.
• The linear calibration only requires 2 points, an empty value and a full value - I took a reading at every 50L using a flow gauge - this was a complete waste of time
• The submersible sensor compensates for changes in atmospheric pressure
• The non submersible version of this pressure sensor is junk IMO - unless I got a dud but I kept on getting random voltage drops and therefore rubbish readings with no changes to the water in the tank. This was connected to an end cap on the outlet flow valve at the bottom of the tank. Also ordered this from Digikey as no one had stock locally so yeah...

Total cost: waaay too much money but I'm super chuffed plus the Mrs is finally off my case about spending so much time on this

If you guys have any q's, I'll do my best to assist.



[AchmatK]

Yes, but the level goes down slowly. I don't want the pump to toggle for one load of laundry for example. I only want the pump to run to fill the tank from say 10% to 100% and not 10 litres at a time.

Basically I need a gadget to tell me the open or closed state of two circuits. If both are open, start the pump and if both are closed, turn off the pump. That I can do with HA or Google.

But that's exactly what an automatic float switch does.

The longer the line from the weight, the lower in the tank the float needs to get to before it switches on the pump.

It's just a matter of finding the perfect balance with the weight location and the length of the line to the float.

Mine is short so it fills up the water tank when I've used 25% off the water in the tank.



[petum]

I struggled with this for ages. Tried everything. Water ingress eats everything.

This is the business.

Home Assistant : Q&A, Tips & Tricks, Your Configs

Could not find a dedicated Solar Assistant thread.. I guess this can be a helpful place. Below you will see Dashboard display What do you have it set at... Considering the math.. I currently have 21 x 550w panels and 4424 Ah(combined) batteries You may wanna check this out...

mybroadband.co.za

Hope the link works.



[Muttley]

I struggled with this for ages. Tried everything. Water ingress eats everything.

This is the business.

Home Assistant : Q&A, Tips & Tricks, Your Configs

Could not find a dedicated Solar Assistant thread.. I guess this can be a helpful place. Below you will see Dashboard display What do you have it set at... Considering the math.. I currently have 21 x 550w panels and 4424 Ah(combined) batteries You may wanna check this out...

mybroadband.co.za

Hope the link works.

The product link is 404



[petum]

The product link is 404

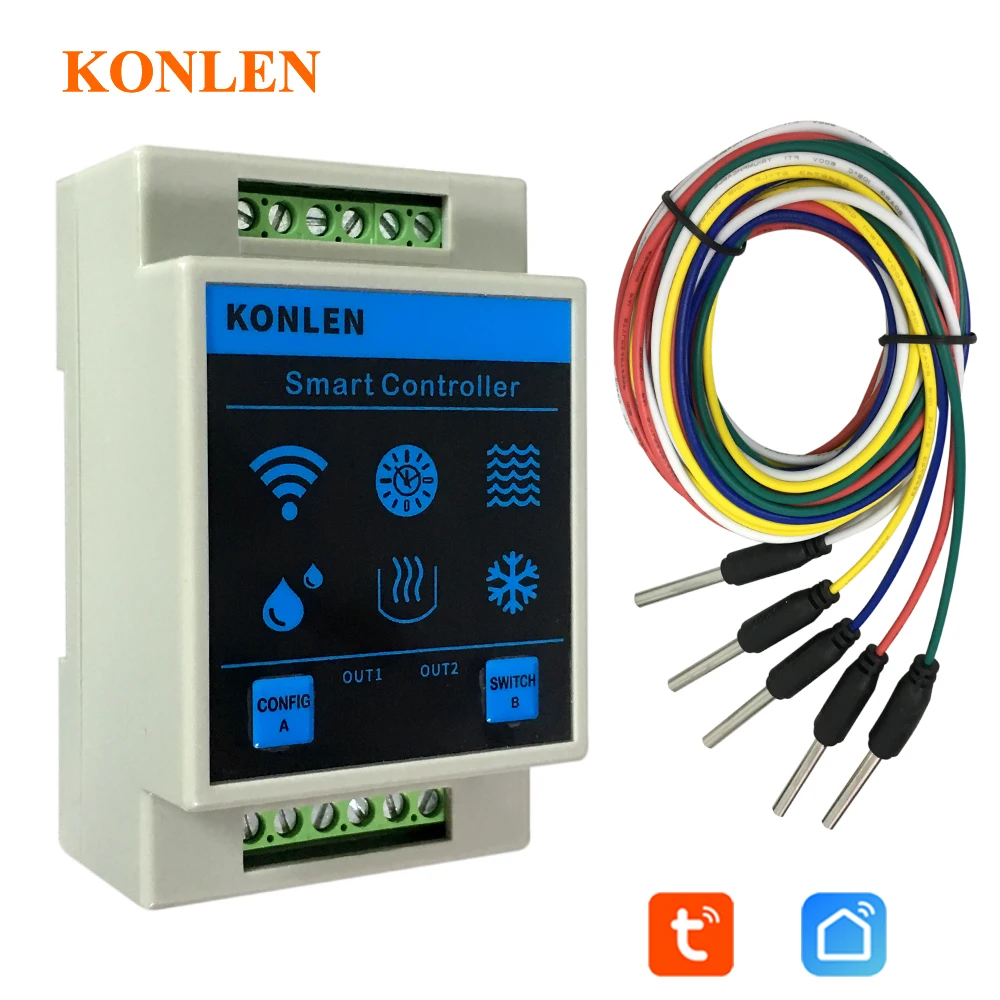

814.24ZAR 36% OFF|Liquid Water Level Sensor Wifi | Alexa Wifi Water Level Sensor - Wifi Water Level - Aliexpress

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com



[Tokolosk]

But that's exactly what an automatic float switch does.

The longer the line from the weight, the lower in the tank the float needs to get to before it switches on the pump.

It's just a matter of finding the perfect balance with the weight location and the length of the line to the float.

Mine is short so it fills up the water tank when I've used 25% off the water in the tank. View attachment 1574340

I was going down the sensor route but instead opted for this. No issues in the past 2 years I've had if and starts filling tanks from 70ish% then stops at 100% (with a small safety margin). Cheap and works - also using sonoff to trigger borehole pump once it is low.

That said well done to the OP for getting it to work with HA!



[Speedster]

I posted this back a few months back but here's what I did and to date, it's been epic!

So after many frustrating late nights and wasted money on rubbish sensors, blown components etc I present to you all an accurate Jojo Tank measurement system for HA:

Components used:

2 x DC - DC Voltage Regulator
1 x 12V Power Supply - used an old HDD power supply
1 x 24V Power Supply
1 x ADS1115 16 bit Analog to Digital Converter
1 x ESP32 S Nodemcu
1 x Gravity: Submersible Pressure Sensor
1 x DF Robot Current to Voltage Converter 4-20mA (I blew one when I mixed up the sensor wiring)
Misc: Enclosure, outdoor rated network cable, conduit, wago style connectors (these things are awesome).

captive_portal:

i2c:
sda: GPIO21
scl: GPIO22
scan: true
id: bus_a

ads1115:
address: 0x48
i2c_id: bus_a
continuous_mode: off

sensor:
- name: Jojo Tank Height
id: tank_height
platform: ads1115
multiplexer: 'A0_GND'
update_interval: 60s
gain: 4.096
unit_of_measurement: "metres"
icon: "mdi:gauge"
# accuracy_decimals: 3

filters:

- median:
window_size: 200
send_every: 10
send_first_at: 4


- calibrate_linear:

- 0.480 -> 0
- 1.029 -> 1.543

- platform: template
name: Jojo Tank Volume
id: tank_volume
unit_of_measurement: "litres"
lambda: |-
return 3.14159265 * 0.71 * 0.71 * id(tank_height).state * 1000;

- platform: template
name: Jojo Tank Percentage
id: tank_percentage
unit_of_measurement: "%"
accuracy_decimals: 0
lambda: |-
return (id(tank_height).state) / 1.543 * 100;


- platform: wifi_signal
name: "Jojo Volume WiFi Signal Sensor"
update_interval: 60s

switch:
- platform: restart
name: tankvolume

I had to place a tape measure inside the tank to measure the actual height of the water for the calibration.

(The tank is slightly over filling as the float needs replacing)

(still need to mount the enclosure and connect the cable from the sensor nicely) Note to self: Don't buy a fiberglass enclosure again!



Some side notes:

• The DC - DC converters are critical to ensure that the voltage is stable.
• As the tank is used through out the day, there is not much of a water level drop as the float keeps filling as water is used.
• The built in analog to digital converters on the ESP32's/ESP8266's are rubbish, hence the needs for an ADS1115.
• The linear calibration only requires 2 points, an empty value and a full value - I took a reading at every 50L using a flow gauge - this was a complete waste of time
• The submersible sensor compensates for changes in atmospheric pressure
• The non submersible version of this pressure sensor is junk IMO - unless I got a dud but I kept on getting random voltage drops and therefore rubbish readings with no changes to the water in the tank. This was connected to an end cap on the outlet flow valve at the bottom of the tank. Also ordered this from Digikey as no one had stock locally so yeah...

Total cost: waaay too much money but I'm super chuffed plus the Mrs is finally off my case about spending so much time on this

If you guys have any q's, I'll do my best to assist.

Multievo



[Geoff.D]

Why not just put a float valve/switch in the tank and have that control the pump directly? Sometimes old school just works.

This!. Forget the fancy stuff and stick to the most elementary and simple things that work for years and years. Dont need power, dont need connectivity don't need anything except a huge dose of common sense.



[bwana]

That said well done to the OP for getting it to work with HA!

Did he?



[Geoff.D]

Well, I see Jojo has come up with their own gadget at a price. Look it up and then ask yourself whether spending all that cash is worth it. I would rather buy two extra Jojo tanks.



[Tabac]

Well, I see Jojo has come up with their own gadget at a price. Look it up and then ask yourself whether spending all that cash is worth it. I would rather buy two extra Jojo tanks.

I read about that. Something like R5K ?? Bloody ridiculous.



[bwana]

Well, I see Jojo has come up with their own gadget at a price. Look it up and then ask yourself whether spending all that cash is worth it. I would rather buy two extra Jojo tanks.

Not that a R2000 gauge doesn't seem a little excessive to me but what size tanks are you getting for R1000 each?



[Speedster]

Not that a R2000 gauge doesn't seem a little excessive to me but what size tanks are you getting for R1000 each?

JoJo 20L Beverage Tank - Wintergrass (380 x 290mm)

Buy JoJo 20L Beverage Tank - Wintergrass (380 x 290mm) Online or Locate Your Nearest Builders Warehouse Store. ✓ Secure shopping ✓ 100% Contactless ✓ Reliable Delivery ✓ Many ways to pay!

www.builders.co.za
