Inverter Battery losing capacity

leon.davibe said:
Yea most likely the shunt was out of touch with reality

It happens , they recalibrate to 0/100 when they hit those SOC

The bms shunt can't count losses, so it kinda goes like this

You have a full battery you use 50% and lose 0.5% to losses balancing heat whatever

Bms thinks battery is 50% actual 49.5%

You charge 40% bms thinks 90% but you had losses again so actual is now 89% not 90%

Rinse repeat many cycles while not touching 0/100 battery thinks it is at 50% SOC while actually at 15%

So you use 15% you and bms think you are fine poof low voltage shutdown

All calibrated again and the song and dance repeats itself

If you hit 100% at least every few days , it can correct the displayed soc to be correct

ie when it hits full voltage either pack/cell (bms dependant) the bms will mark it as 100% soc and start counting from there again
Click to expand...
That battery is going to spend most of it's like doing 50% to 100% daily as it is at our beach house.

Every day looks like this :

The guys did send me the firmware and update tool - but I seem to have misplaced the RJ-45 to DB-9 cable I had. Does someone know the pin-outs?

Rouxenator said:
That battery is going to spend most of it's like doing 50% to 100% daily as it is at our beach house.

Every day looks like this :
View attachment 1612247

The guys did send me the firmware and update tool - but I seem to have misplaced the RJ-45 to DB-9 cable I had. Does someone know the pin-outs?
Click to expand...
If it hits 100% daily , then shunt drift isn't the cause for the event

my take doesn't apply

I would check individual cell voltages

And check if the soc it discharges to has changed since the event

Rouxenator said:
Fixed it today using a RJ-12 to DB-9 cable I made myself

View attachment 1624047

View attachment 1624049
Click to expand...
Rouxenator said:
That battery is going to spend most of it's like doing 50% to 100% daily as it is at our beach house.

Every day looks like this :
View attachment 1612247

The guys did send me the firmware and update tool - but I seem to have misplaced the RJ-45 to DB-9 cable I had. Does someone know the pin-outs?
Click to expand...
Hi
RJ12 or RJ45?Where did you get the update tool and firmware from? I need to do both my batteries.
Regards
Brad

Rouxenator said:
My Volta Stage 1 did that a week or so ago, still waiting to hear back from them on how to get the firmware update done.

View attachment 1609388
Click to expand...

Good morning, My batteries are doing exactly the same now, and I just cannot seem to get it sorted even after all the suggestions. Would you please be able to advise if you managed to have yours corrected and if so how you managed it please? Thank you in advance. Francois

Hi

When My AC power goes off, my inverter states that my battery losses it's voltage and capacity within seconds.

I have checked my battery and even bought a new one. the inverter still says the same when AC is off.

I am only running my TV and my wifi router off the inverter.

Any advise in what the problem Might be and how to fix it?

It is a 1kw inverter with a 100ah Deep cycle gel battery.

Delarey Pitzer said:
Hi

When My AC power goes off, my inverter states that my battery losses it's voltage and capacity within seconds.

I have checked my battery and even bought a new one. the inverter still says the same when AC is off.

I am only running my TV and my wifi router off the inverter.

Any advise in what the problem Might be and how to fix it?

It is a 1kw inverter with a 100ah Deep cycle gel battery.
Click to expand...
Voltage will drop when you put load on it, that is normal. What you need to watch is the voltage doesn't go below the 50% voltage for LA batteries.

Lupus said:
Voltage will drop when you put load on it, that is normal. What you need to watch is the voltage doesn't go below the 50% voltage for LA batteries.
Click to expand...
that is the thing, the voltage drops below 50% within seconds and the capacity runs from 100& to 0%.

Delarey Pitzer said:
I purchased a new battery after it happened the first time, and it is still doing that with the new battery.
Click to expand...
Ok, what inverter is it, what TV are you running, is it 1 single 100ah battery?
Also generally gel batteries aren't really great for backup power solutions.

it is a 1KW inverter. I am running a Hisence 70 inch, and yes, only 1 single 100ah battery

wingnut771 said:
Maybe the new battery is DOA? Have you got a multimeter to check actual battery voltage?
Click to expand...
I do not have a multimeter no.
when I connect the battery to my father's inverter, everything works well.
that's why I think the problem is with the inverter?

Delarey Pitzer said:
I do not have a multimeter no.
when I connect the battery to my father's inverter, everything works well.
that's why I think the problem is with the inverter?
Click to expand...
Well I think we've found the issue, get a new inverter

www.geewiz.co.za

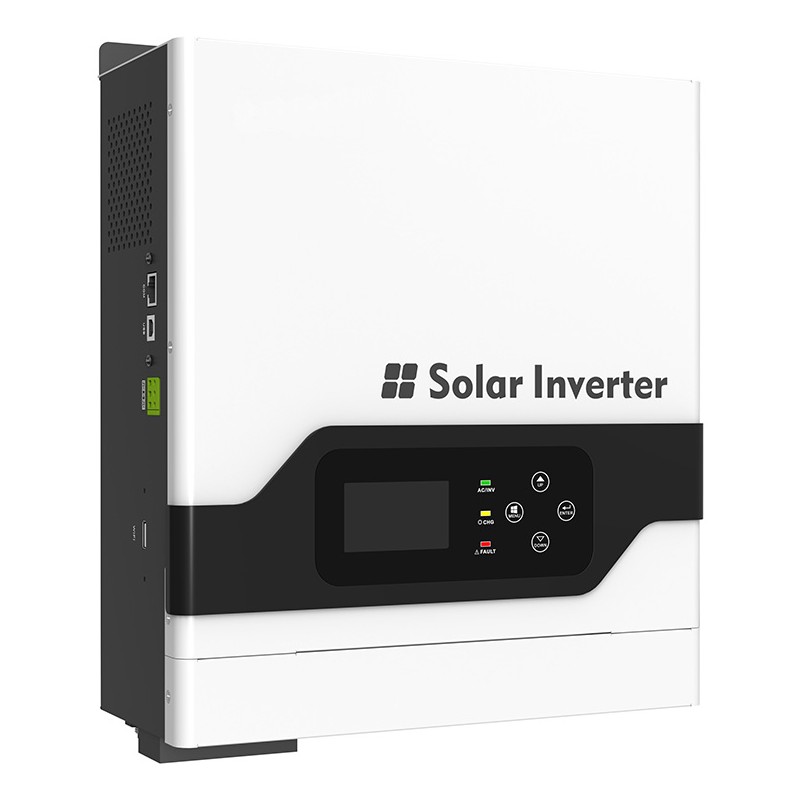

GeeWiz Axpert Type 1000VA (1000W) 1KW PURE Sine Wave Inverter - 60A MPPT (720W) (Hybrid) - Refurb - The Menu Button Has Been Changed

Geewiz Axpert Type 1000VA (1000W) Inverter Pure Sine Wave Note: 1) Fan comes on during charging, load shedding and periodically during normal operation 2) If installing in a DB board, please make sure to add a separate Earth & Neutral to the inverter output circuit to mitigate chances of surges
www.geewiz.co.za www.geewiz.co.za
www.geewiz.co.za

GeeWiz Axpert Type 1000VA (1000W) 1KW PURE Sine Wave Inverter - 60A MPPT (720W) (Hybrid)

Geewiz Axpert Type 1000VA (1000W) Inverter Pure Sine Wave Note: 1) Fan comes on during charging, load shedding and periodically during normal operation 2) If installing in a DB board, please make sure to add a separate Earth & Neutral to the inverter output circuit to mitigate chances of surges
www.geewiz.co.za www.geewiz.co.za
