Powering B618 during these &*#!! cuts

M

MirageF1

Executive Member
Joined
Jun 29, 2018
Messages
8,170
Reaction score
4,587
Hi not really looking at forking out 5k+ on inverter solution for a few common household devices(kettle, TV, etc) at this stage, can someone recommend a economical alternative , i.e power bank, battery, etc

It would need to be able to supply 2aH for say 4 hours.
The router draws 24W according to spec sheet.

As an aside:
I have a 10,000mah Rosmoss power bank which comes in handy to recharge my phone..

Takealot.com: Online Shopping | SA's leading online store

South Africa's leading online store. Fast, reliable delivery to your door. Many ways to pay. Shop anything you can imagine: TVs, laptops, cellphones, kitchen appliances, toys, books, beauty & more. Shop the mobile app anytime, anywhere.
www.takealot.com www.takealot.com

Where can I purchase a suitable step up cable without making my own to power my router directly from the power bank?

Last edited:
Thanks, but as I already have a 10,000mah ( it can supply 2000mah) I just need a suitable usb 5v 12v DC cable.

Last edited:
Theres's those small huawei batteries but those are only good for about 3hrs. I have one and works a charm as I am able to continue working on the web without skipping a beat even after loadshedding hits - Like it did today. Just know that you are looking at around 3hrs and not 4. Should there be another option or alternative I am all ears.

Check this thread.

Router Battery Backup

Anyone using anyone of these two to backup ADSL router during power outages? If so, any feedback or other relatively cheap solutions? https://www.geewiz.co.za/ups/80323-linkqnet-epower-12v-25w-dc-ups-for-d-link-routers.html OR...
mybroadband.co.za mybroadband.co.za

MirageF1 said:
Link? Rechargeable I assume?
Click to expand...

Mini UPS

Buy Mini UPS online at the Best Prices! Door to Door and Overnight Delivery. Voted the best online store in SA. View Here
www.geewiz.co.za www.geewiz.co.za

They also come free with most huawei b315 routers

phly said:

Mini UPS

Buy Mini UPS online at the Best Prices! Door to Door and Overnight Delivery. Voted the best online store in SA. View Here
www.geewiz.co.za www.geewiz.co.za

They also come free with most huawei b315 routers
Click to expand...
Not with Rain when I bought it last year, but thanks.

I think I'll just try to source a compatible cable for my power bank to router( I mentioned I already have one).

Something like this might work. These devices can usually only supply ~1A @9V from a 2.1A powerbank port. Most 5V powerbanks can only supply a maximum of 10W.
www.aliexpress.com

24.2ZAR 20% OFF|Diymore Usb Power Boost Line Dc 5v To Dc 9v / 12v 1a 2.1x5.5mm Usb Converter Adapter Cable Step Up Module Plug Wire Length 1.3m - Integrated Circuits - AliExpress

Smarter Shopping, Better Living! Aliexpress.com
www.aliexpress.com www.aliexpress.com

I am using one of the Huawei battery packs that I bought from oceanmasterza a few months ago. They output 7.4V @ 2A.

router battery (power bank) for Huawei b315

Item: The back up battery which came with my Huawei B315 router. One user tested successfully on a B618. Manual says that battery lasts 2-3 hours but some forumites have reported better usage. see here and cr@zydude's feedback below. Age and condition: Immaculate - bought brand new end of...
mybroadband.co.za mybroadband.co.za

MirageF1 said:
Not with Rain when I bought it last year, but thanks.

I think I'll just try to source a compatible cable for my power bank to router( I mentioned I already have one).
Click to expand...

Let us know should you get something -

@Jake45 You make a good point about the power bank likely only being able to supply 10W/hr, although the data sheet quotes 2.1Ah current output :giggle:

Confirmation: Seems I am in luck.It has 2 usb output ports, one of which is rated 1A and the other 2.1A :thumbsup: IMG_20191206_174635.jpgIMG_20191206_175100.jpg

Last edited:
@MirageF1: If you operate the router at between 7.5~9V then it should draw less current than at 12V. Neither the B315 or the B618 will operate directly from a powerbank as I have already tried to use them at 5V. They both work on the Huawei battery pack that I mentioned which outputs 7.4V.

If you don't want to order something from China then you could purchase a boost converter board from Mantech but you would have to wire it up and put it in a case etc. I think those ready made converters from China are probably using the same board internally as the same company also sells the separate boards.

MANTECH Electronics

Mantech Electronics is an Electronic Component, Test and Measurement, Tool and Power Product Importer, Supplier and Distributor. Products are available from any one of our branches and distributors in JHB, DBN and CPT. We are committed to helping you succeed.!
www.mantech.co.za

If you haven't bought from Aliexpress before you should be able to get a $3 or 4$ coupon to use on your first purchase.

You can make your own PSU with one of each of these:

www.communica.co.za

PSU CCTV 12VDC 3,5A

Power Supply 12VDC and 13.8VDC Charging 3,5 AMP Plastic Enclosure Includes Battery Compartment Overview Features Cold Start 15A/115Vac, 30A/230Vac Overload Protection 115% ‐ 135% of the rated power, Pulsing hiccup shut down, auto recovery Overvoltage protection Short circuit protection...
www.communica.co.za www.communica.co.za
www.communica.co.za

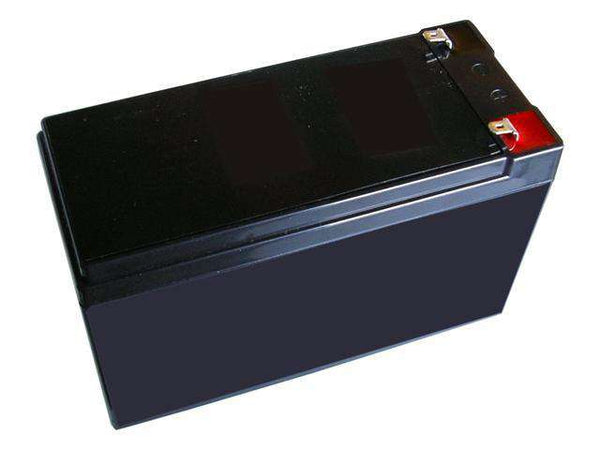

BATT 12V7,2A

Communica BATT 12V7,2A Batteries 12V 7.2AH Lead-Acid Rechargeable Battery • L=151 W=65 H=100mm Overview Features Specification
www.communica.co.za www.communica.co.za
www.communica.co.za

ACM DC/DC BUCK-BOOST 1.25-35V 4A

XL6009 Step-up DC Boost Module with Output Voltage from 1.25~32V Adjustable 4A
www.communica.co.za www.communica.co.za

~3 Hrs @25W. You can add more batteries as needed

I will make one up for you at cost + R200 if you want

MirageF1 said:
Hi not really looking at forking out 5k+ on inverter solution for a few common household devices(kettle, TV, etc) at this stage, can someone recommend a economical alternative , i.e power bank, battery, etc

It would need to be able to supply 2aH for say 4 hours.
The router draws 24W according to spec sheet.

As an aside:
I have a 10,000mah Rosmoss power bank which comes in handy to recharge my phone..

Takealot.com: Online Shopping | SA's leading online store

South Africa's leading online store. Fast, reliable delivery to your door. Many ways to pay. Shop anything you can imagine: TVs, laptops, cellphones, kitchen appliances, toys, books, beauty & more. Shop the mobile app anytime, anywhere.
www.takealot.com www.takealot.com

Where can I purchase a suitable step up cable without making my own to power my router directly from the power bank?
Click to expand...

I bought this, and tested it on Sunday, after 3 hours one light were off, I connected a Zyxel SBG3300 to it, charged it full, unplugged and started the timer.


UPS Multi-Output 5V & 12V Battery Power Bank for WiFi Routers available to buy online at @TAKEALOT We offer fast, reliable delivery to your door. https://www.takealot.com/ups-multi-output-5v-12v-battery-power-bank-for-wifi-routers/PLID54505550

gfmalan said:
UPS Multi-Output 5V & 12V Battery Power Bank for WiFi Routers available to buy online at @TAKEALOT We offer fast, reliable delivery to your door. https://www.takealot.com/ups-multi-output-5v-12v-battery-power-bank-for-wifi-routers/PLID54505550
Click to expand...

Or similarly priced (has only 1 output ), though yours is better option.

www.geewiz.co.za

Mini DC UPS (12000mAh) Backup Battery Power Bank Supply (44.4Wh) - 12V Router, CCTV, Wifi Backup

Backup power for ANY 12V appliance Lasts approximately 5 HOURS on backup power Input:12V 2000mA Output:12V 2000mA
www.geewiz.co.za www.geewiz.co.za

I see TA and Geewizz will both delivery by Tuesday'ish...

however would prefer it in my hands sooner than later..anyone know of reliable stockist in Southern Subs, CT where I can go in and purchase one?

phly said:

Mini UPS

Buy Mini UPS online at the Best Prices! Door to Door and Overnight Delivery. Voted the best online store in SA. View Here
www.geewiz.co.za www.geewiz.co.za

They also come free with most huawei b315 routers
Click to expand...


Will the battery that came with the B315 work for the B525
