Router Battery Backup

MidnightZA said:
www.futurelight.co.za

150W Portable Power Station - Lightweight Backup for Camping

Reliable 150W Portable Power Station with 162WH Lithium Battery for camping & emergencies. Lightweight, versatile charging. Order online now!
www.futurelight.co.za www.futurelight.co.za

Does anyone have one of these? Futurelight has a discount code, 50% off for today only
Click to expand...

Code: FEB50

Takealot.com: Online Shopping | SA's leading online store

South Africa's leading online store. Fast, reliable delivery to your door. Many ways to pay. Shop anything you can imagine: TVs, laptops, cellphones, kitchen appliances, toys, books, beauty & more. Shop the mobile app anytime, anywhere.
www.takealot.com www.takealot.com

Would not recommend, based on these comments. It is not a 'UPS' as it cannot be used while charging, so is not 'set and forget.

Anyone know whether a single Gizzu 36W will provide sufficient power to power the following for 2.5 hours

1. MikroTik RB2011UiAS-2HnD and
2. Ubiquiti UAP-LR

The plan during loadshedding is to run the AP in low power mode (and 2.4GHz only) powered off the Gizzu PoE port. During loadshedding the AP will be the only connected device.

AfricanTech said:
Anyone know whether a single Gizzu 36W will provide sufficient power to power the following for 2.5 hours

1. MikroTik RB2011UiAS-2HnD and
2. Ubiquiti UAP-LR

The plan during loadshedding is to run the AP in low power mode (and 2.4GHz only) powered off the Gizzu PoE port. During loadshedding the AP will be the only connected device.
Click to expand...
See post 2840

JimboBob said:
Because I trust you guys so much, I thought I'd ask a question here.
I bought this Vizia UPS for fibre.

But in my wisdom , I see the router and ONT are both 1.5amp at 12V.
The UPS is max 24W and if I understand correctly, I need 36W.
Correct?

I'm thinking of returning it, are there any other recommendations?
Click to expand...

Soooo...
Had a reason to use the UPS yesterday.
The UPS powers router fine.
The ONT however was not happy, even with UPS/ONT only, so it's not a power issue.
UPS flashes a red light (I'm thinking this is 'bad'). ONT showed no lights, nothing.

The documentation on the UPS is pretty crap, not sure what the issue is.
I can only assume it might be a polarity issue?
Returning it to Takealot...

On the hunt again for a USP, battery pack...
Maybe something where you can swap polarity?

Edit:
Ok it's not a polarity issue. Checked the adapters for both ONT and router and they match.
The ONT adapter does however say Alternating Power Supply, and the UPS says "...for DC Devices..."
I assume this is the problem?

Last edited:
JimboBob said:
Soooo...
Had a reason to use the UPS yesterday.
The UPS powers router fine.
The ONT however was not happy, even with UPS/ONT only, so it's not a power issue.
UPS flashes a red light (I'm thinking this is 'bad'). ONT showed no lights, nothing.

The documentation on the UPS is pretty crap, not sure what the issue is.
I can only assume it might be a polarity issue?
Returning it to Takealot...

On the hunt again for a USP, battery pack...
Maybe something where you can swap polarity?

Edit:
Ok it's not a polarity issue. Checked the adapters for both ONT and router and they match.
The ONT adapter does say Alternating Power Supply, and the UPS says "...for DC Devices..."
I assume this is the problem.
Click to expand...

The adapters supplied with (most) devices convert 220v AC (alternating current) into the required DC (direct current) voltage

Some devices do use low voltage AC, but I'd be very surprised if your ONT requires AC. Check you're supplying it with the correct voltage

Segg said:
The adapters supplied with (most) devices convert 220v AC (alternating current) into the required DC (direct current) voltage

Some devices do use low voltage AC, but I'd be very surprised if your ONT requires AC. Check you're supplying it with the correct voltage
Click to expand...

Yep, this is really confusing...
I found the datasheet for the ONT

The ONT is 12v 1.5a - according to the data sheet, doesn't this make it the DC unit?

The power adapter does not have any DC/AC markings for Input/Output, just text saying Alternating Power Supply.

Just coming back to issue again, UPS power on but then starts blinking red light when plugged in to ONT.
If it's not a polarity issue or power issue can I assume it's a DC/AC issue?

AfricanTech said:
Followup: Gizzu 36W working very nicely. Powering the Miktotik RB2011 (via DC connector) and UAP-LR (via PoE).

Haven't tested how long it will run for
Click to expand...
Mine lasted about 30 months, then the battery was going flat 90 minutes into load shedding. I replaced the batteries with these Samsung's. Now it lasts more than 4 hours . Using a fibre ONT, Ubiquity Edge Router X and a Unify AC Lite.

Check this out on takealot: Samsung 30Q 18650 3000mah - 2 Pack

Takealot.com: Online Shopping | SA's leading online store

South Africa's leading online store. Fast, reliable delivery to your door. Many ways to pay. Shop anything you can imagine: TVs, laptops, cellphones, kitchen appliances, toys, books, beauty & more. Shop the mobile app anytime, anywhere.
www.takealot.com www.takealot.com

deesef said:
Mine lasted about 30 months, then the battery was going flat 90 minutes into load shedding. I replaced the batteries with these Samsung's. Now it lasts more than 4 hours . Using a fibre ONT, Ubiquity Edge Router X and a Unify AC Lite.

Check this out on takealot: Samsung 30Q 18650 3000mah - 2 Pack

Takealot.com: Online Shopping | SA's leading online store

South Africa's leading online store. Fast, reliable delivery to your door. Many ways to pay. Shop anything you can imagine: TVs, laptops, cellphones, kitchen appliances, toys, books, beauty & more. Shop the mobile app anytime, anywhere.
www.takealot.com www.takealot.com
Click to expand...
Just by from a Vape shop
bossvape.co.za

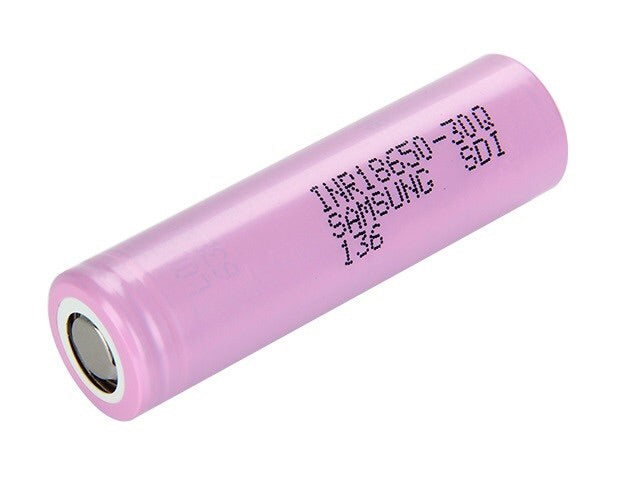

Samsung 30Q INR 18650 3000MAH 20A Battery

Battery specifications: Model: INR18650-30Q. Manufacturer: Samsung. Chemistry: INR Max. continuous discharge current: 15A. Nominal capacity: 3000mAh. Nominal voltage: 3.6 V. Charging voltage: 4.20 +/- 0.05 V Not protected This battery is mainly used for Vaping. Important Warning Fully charge...
bossvape.co.za

JimboBob said:
Yep, this is really confusing...
I found the datasheet for the ONT

The ONT is 12v 1.5a - according to the data sheet, doesn't this make it the DC unit?

The power adapter does not have any DC/AC markings for Input/Output, just text saying Alternating Power Supply.

Just coming back to issue again, UPS power on but then starts blinking red light when plugged in to ONT.
If it's not a polarity issue or power issue can I assume it's a DC/AC issue?
Click to expand...

Either post a pic of the power adapters data sticker, or get a multimeter out and check what's coming out of it

Jean Claude Vaaldamme said:
Just by from a Vape shop
bossvape.co.za

Samsung 30Q INR 18650 3000MAH 20A Battery

Battery specifications: Model: INR18650-30Q. Manufacturer: Samsung. Chemistry: INR Max. continuous discharge current: 15A. Nominal capacity: 3000mAh. Nominal voltage: 3.6 V. Charging voltage: 4.20 +/- 0.05 V Not protected This battery is mainly used for Vaping. Important Warning Fully charge...
bossvape.co.za
Click to expand...
Or buy from Takealot on a decent daily deal - NEVER at the normal list price...

deesef said:
Mine lasted about 30 months, then the battery was going flat 90 minutes into load shedding. I replaced the batteries with these Samsung's. Now it lasts more than 4 hours
Click to expand...

Did you DIY the batteries together into a 4x pack?

deesef said:
Mine lasted about 30 months, then the battery was going flat 90 minutes into load shedding. I replaced the batteries with these Samsung's. Now it lasts more than 4 hours . Using a fibre ONT, Ubiquity Edge Router X and a Unify AC Lite.

Check this out on takealot: Samsung 30Q 18650 3000mah - 2 Pack

Takealot.com: Online Shopping | SA's leading online store

South Africa's leading online store. Fast, reliable delivery to your door. Many ways to pay. Shop anything you can imagine: TVs, laptops, cellphones, kitchen appliances, toys, books, beauty & more. Shop the mobile app anytime, anywhere.
www.takealot.com www.takealot.com
Click to expand...

Thanks.

30 months for an R800 outlay is pretty good imo.

If you bored and feel like a project, I made a battery backup that powers my router + fibre box and well anything you plug into it. I bought the following :
a plastic waterproof clip box for easy access
in line fuse
40amp 12v battery (chose 40amp because its not too heavy)
2x 12v DC cigarette lighter, mounted one each side.
some wire

Now I can use 12v DC, and I can also use AC when I plug my little invertor (like a camping one as it has a cigareete lighter attachment on it) which is half the size of a tissue box and its 150w. I plug my modems etc into that and have run my fibre for like the whole day. When I want to charge the battery I use the same charger I use for my car, its a Optimate 6.

ld13 said:
Did you DIY the batteries together into a 4x pack?
Click to expand...
Yep. I carefully pulled the spot-welded ribbon wires from the old battery pack, then soldered the new cells in. Just be careful that none of the wires touch another one while working...

ld13 said:
The data sheet shows both AC and DC. We need a picture of your ONT power brick sticker.
Click to expand...
I actually had to use a magnifying glass and a torch to read it, it's branded in to the plastic and extremely difficult to read.

I think I might actually go the full UPS route.
Something like this. I know it's kind of overkill but whatever...

JimboBob said:
I actually had to use a magnifying glass and a torch to read it, it's branded in to the plastic and extremely difficult to read.

I think I might actually go the full UPS route.
Something like this. I know it's kind of overkill but whatever...
Click to expand...
That's not designed to keep anything running for more than a couple of minutes. It's possible to hack it to get it to work (adding bigger batteries etc), but the 12V lithium options (Ratel / Gizzu etc) are far superior solutions for loadshedding backup.

Speedster said:
That's not designed to keep anything running for more than a couple of minutes. It's possible to hack it to get it to work (adding bigger batteries etc), but the 12V lithium options (Ratel / Gizzu etc) are far superior solutions for loadshedding backup.
Click to expand...
It's only to run a router and ONT.

I bought a Vizia UPS (similar to Gizzu) but ONT doesn't like it, I'm assuming it's because it works on AC power.

JimboBob said:
It's only to run a router and ONT.

I bought a Vizia UPS (similar to Gizzu) but ONT doesn't like it, I'm assuming it's because it works on AC power.
Click to expand...
Maybe best way to get the assumption out of the way is to stick a multimeter on it?
